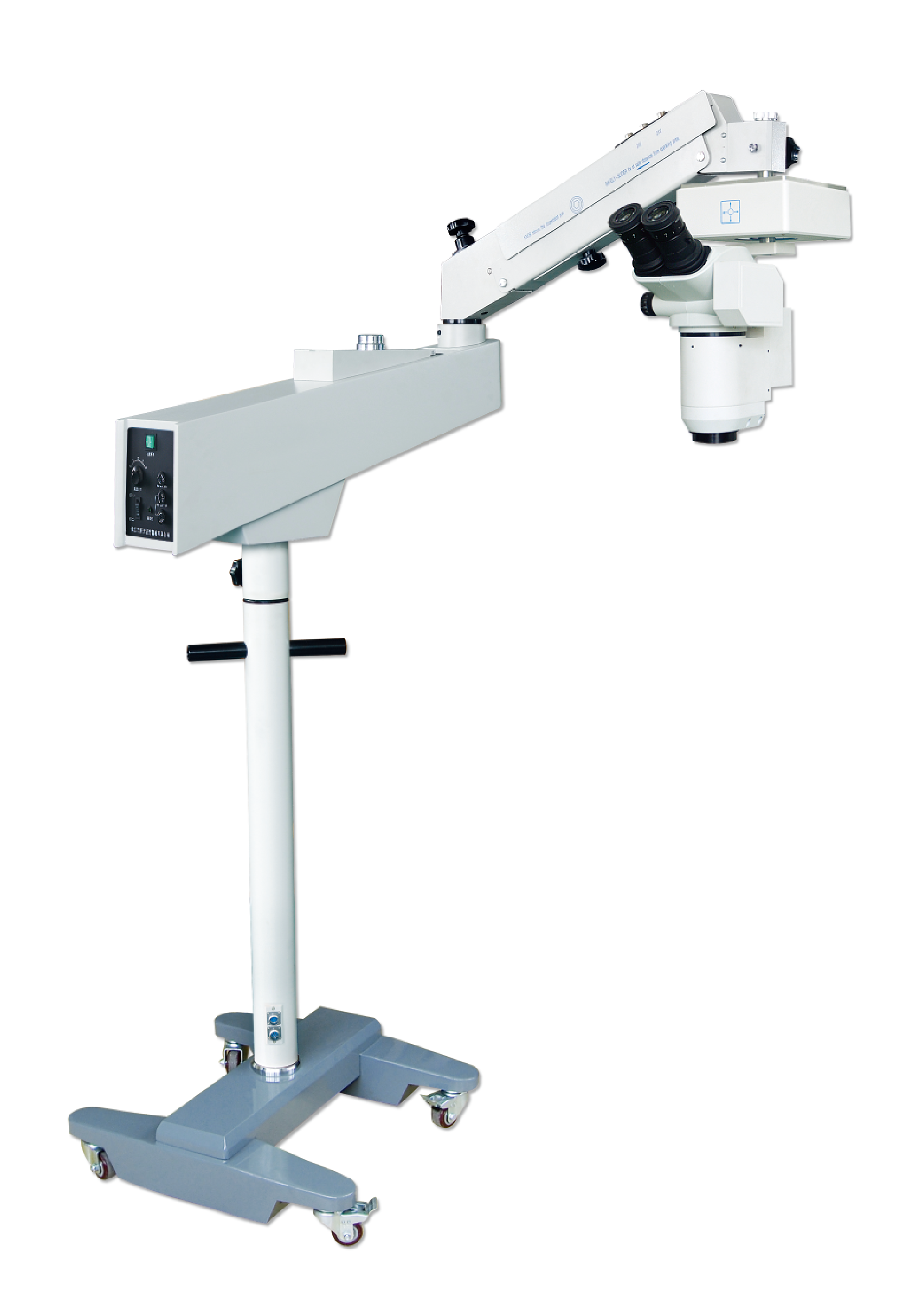

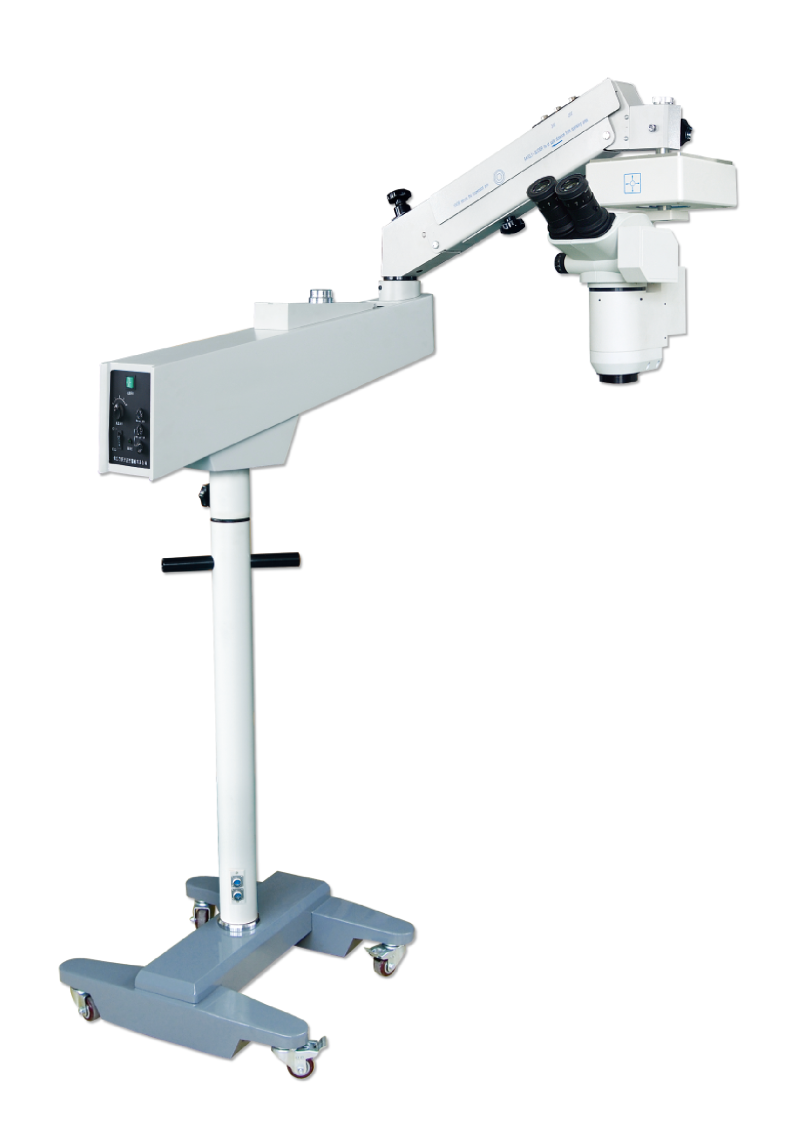

Operation microscope 5A

Description

1、 Optical performance

★ 1. Main mirror (original Japanese OLYMPUS)

(1) Eyepiece: 10X wide angle

(2) Observation slope: 45 °

(3) Pupil distance: 50-76mm, continuously adjustable

(4) Diopter adjustment: ± 7 degrees (binocular)

(5) X-Y cross plane shifter: 2.2mm/s foot control

★ (6) Magnification rate: 4X-20X electric stepless continuous zoom

(7) Field of view: 8mm-65mm

(8) Working distance: 200mm

(9) Fine adjustment: ± 20mm foot control

2. Assistant mirror

(1) Binocular assistant mirror: Stereoscopic same beam path

★ (2) Magnification factor: 4X-20X manual stepless continuous zoom

(3) The auxiliary mirror can rotate and form a position of 90 ° -180 ° with the main mirror

3. All optical lenses are equipped with the latest reflective coating apochromatic lenses (primary, secondary, objective, and zoom system).

4. Excellent clarity, contrast, depth of field 5mm-50mm, resolution>120 lines, high brightness, and strong stereoscopic effect.

2、 Lighting system

1. Form: Coaxial lighting with optical fiber

2. Light source: dual light source 15V/150W (Osram halogen lamp imported from Germany)

3. Control method: four level dimming

4. Illumination: ≥ 50000Lux

5. Power supply: 220V ± 10% 50Hz

3、 Support system

1. Maximum extension length of cross arm: 1230mm

2. The length of the first arm is 680mm, the length of the second arm is 430mm, and the rotation angle is 300 °

3. Vertical adjustment range: ± 150mm

4. Base size: 600mm * 600mm

5. Foot control switch: eight function foot pedal: electronic X-Y cross plane shifter, electronic fine adjustment, electronic zoom, electronic zoom

Suitable for orthopedics, hand surgery, spinal surgery, ophthalmology, and other surgeries.
