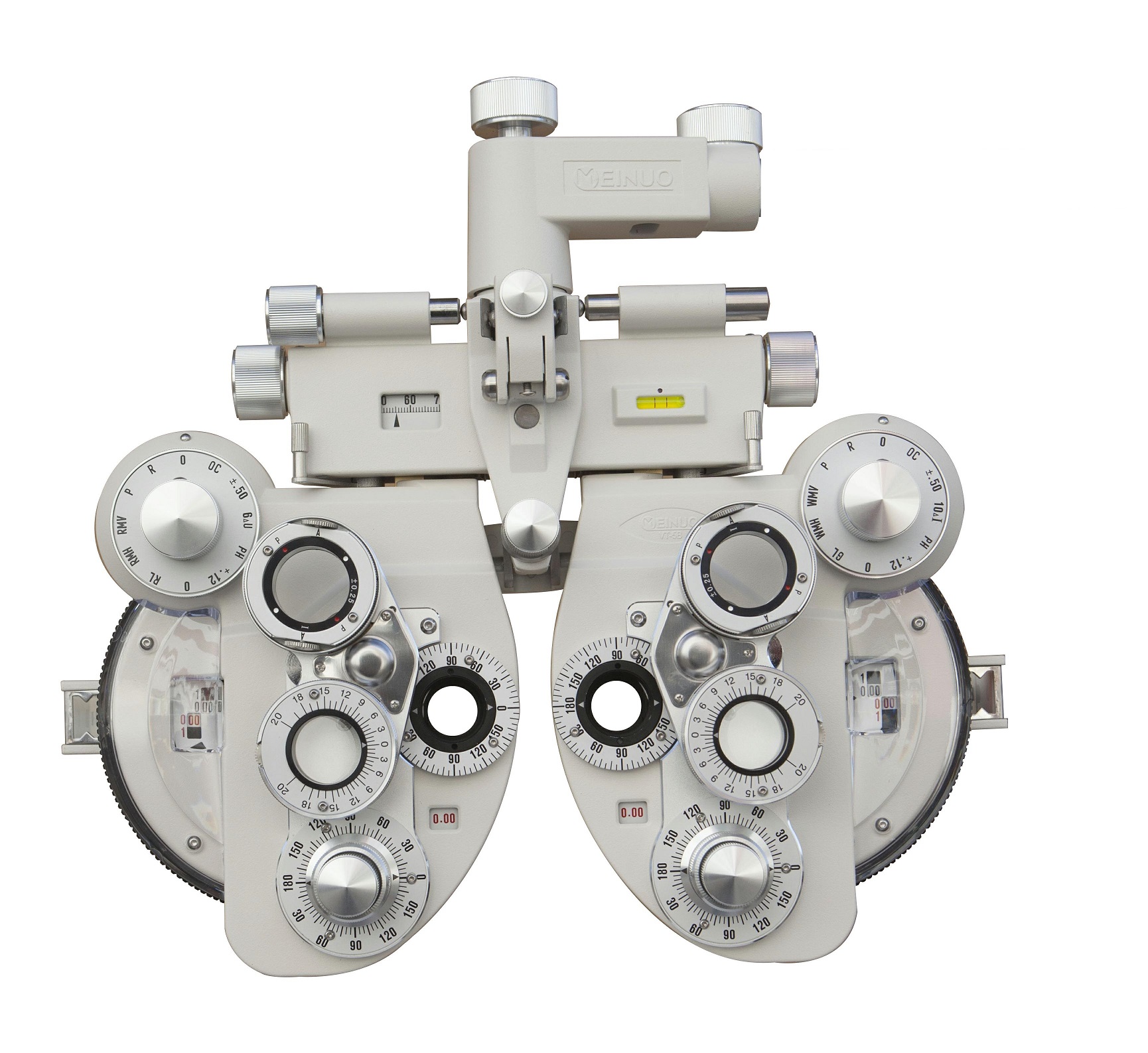

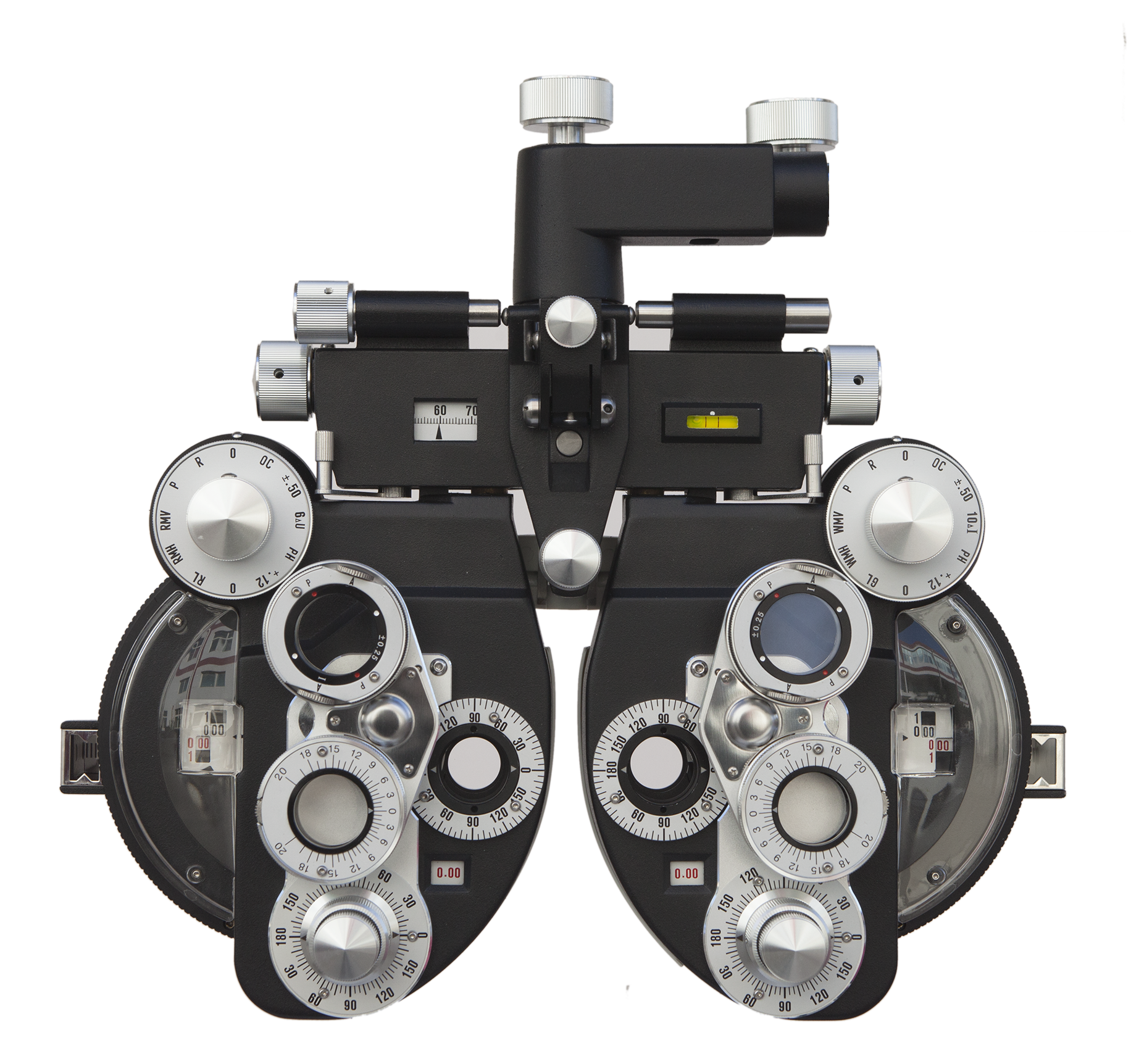

Manual Phoropter VT-100

Description

Features:

1. Unique design “Blue Trim”.
2. Capable of checking up all-sided visual functions, accurate and comfortable in measurement.
3. Perfect surface coating, high grade plated optical lens, both FDA approved lens and phoropter.
4. All accessories included, near vision rod, near vision chart, dust-cleaner, addon lens.

Specifications:
Sphere Power:
Range: -19.00D～+16.75D, Increments: 0.25D
Addon Auxiliary lens+0.12D, Increments: 0.12D
Cylinder Power:
Range: 0~-6D
Addon Auxiliary cylinder lens －2.00D to－8.00D, Increments: 0.25D
Addon Auxiliary cylinder lens +0.12D, Increments: 0.12D

Cylinder axis: Range: 0～180°, Increments: 5°
Pupil Distance: 45~75mm, Increments: 1mm
Cross Cylinder: ±0.25D
Rotary prism: Range：0～20△, Step：1△
PD Adjustment: 50～75mm, Step：1mm
Convergence Adjustment: ∞, 380mm(When PD 64mm)
Forehead Reat Adjustment: 16mm
Vertex Distance: 13.75mm, From corneal point to standard lens surface
Auxiliary Lens: Cyl 0.00 x 2, Cyl -0.12 x 2, Cyl -2.00 x 2
Dimension: 335d × 320w × 98h mm
Weight: Approx 6.5kg
